Special modules
Special panels
Atersa's Product Engineering Department offers its customers special panels equipped with custom devices to meet specific needs.
All Ultra line panels can be supplied with the frame, Tedlar, and cells in different colour finishes. Ultra Line panels can optionally be supplied in transparent Tedlar or without an aluminium frame (laminates).
These solar panels made in Spain are manufactured to the highest quality standards and are available on Atersa's online shop. The company has over 30 years' experience in the photovoltaic sector.

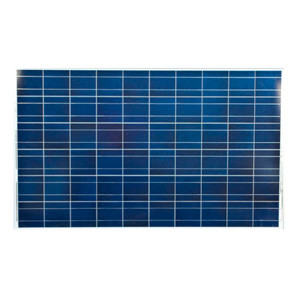

Laminates
Panels not mounted on aluminium frames:
- Designed for architectural integration
- Compliant with standard IEC 61215:2005 and standard IEC 61730:2007
- Withstands 240 kg/m² and winds up to 180 km/h
- High perimeter adhesive bonding
Photovoltaic panels in Black Tedlar, Black Frames and Black Monocrystalline Cells
Download product data sheet:

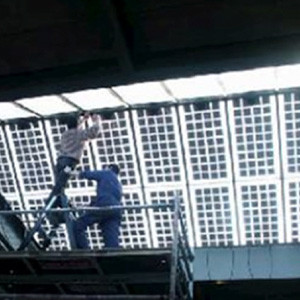

A-75 laminates in transparent Tedlar
- Dimensions: 1372x715x3.15 mm
- Multi-contact wiring
- Area occupied by cells (approx.): 60%
- Weight: 10.2 k

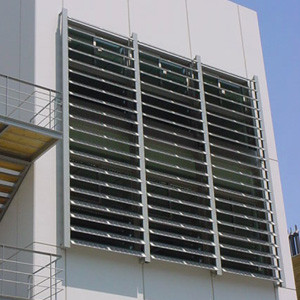

TFM 1x7 5” laminate
14.5 Wp + 10% 5" 7-cell panels for louvre-style mounting.

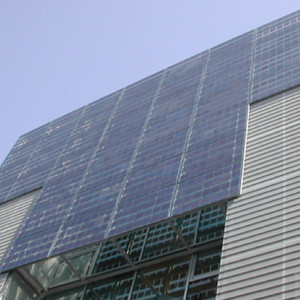

APEX-8 (4x7) laminates in transparent Tedlar
- Area occupied by cells (approx.): 60%
- Laminate dimensions: 1700x1200x38 mm
- Weight: 50 kg
- Power output: 93 W ± 10%

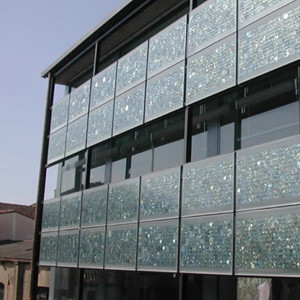

TFM 1600x1000 (green cell) panels in transparent Tedlar
- Transparent Tedlar
- Panel dimensions: 1605x1006x35 mm
- Area occupied by cells (approx.): 70%
- 5" green cells
- Power output: 150 W ± 10%

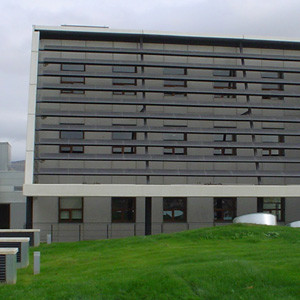

A-120 panel in black Tedlar
- Black Tedlar
- Panel dimensions = 1470x654x33 mm
- 150 Mpsq 6" cells
- HOOK aluminium frame
- Power output: 120 W
Integrated ceramic ventilated façade mounting
- Helps improve the climate conditions of buildings.
- Makes harsh winter conditions milder and cools down summer heat.
- Eliminates surface condensation and reduces noise pollution by 10 to 20%.
- A-75 ATM panels use the same cells and materials and are manufactured the same way as the standard model and have the same standard warranties and benefit from the same prolonged durability and the same conventional features as our photovoltaic modules.
- The panels come with a frame and are specially sized specifically for this application.
- Blue Tedlar is used for better visual integration with the building and quick connect wiring is provided for easy mounting on the ventilated façade.
- The special pyramidal textured glass on the front increases production and augments the solar radiation captured by cells by at least 10%, appreciably raising the efficiency of daily operation.

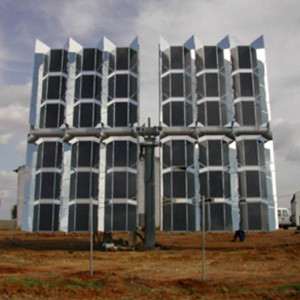

A-133 5x11 panels for use in reflective mirrors for heliostats
- High UV resistance EVA.
- Panel dimensions: 1470x654x35 mm
- Minimum power output: 133 W.
- Number of cells in series: 55. 5" monocrystalline cells
